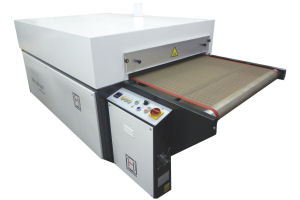

S-DRY 100-300 - IR/AIR-heated dryer
- IR/AIR-dryer
- 70 / 100 / 120cm beltwidth
- 200 / 300 / 400cm heating zone
Technical Data
| beltwidth: | 100 cm |
| infeed: | 80 cm |
| IR-Tunnel: | 300 cm |
| Outfeed: | 120 cm |
| total-length: | 510 cm |
| Temperature range: | up to 180°C. |
| Electrical: | 18 KW, 400 V 3/N + E 50 Hz. |
| Belt-speed: | adjustable 1 – 7 m/min. |
| Conveyor-belt: | Teflon-coatet glass-fiber |
| IR-type: | Long wave IR-radiators |
| Exhaust: | Exhaust fan |
- High speed tunnel designed for rapid curing of textile inks.
- Heat source consisting of the IR-radiators to guarantee long life and perfectly uniform heat distribution throughout the surfaces, not influenced by product colour.
- The tunnel reaches operating temperature within a few minutes.
- High precision of preset temperature.
- The insulation made of excellent quality materials using special techniques, the outside frame always remains at room temperature.
- Provided with extractor for expelling fumes produced.
- Conveyor belt made of material resistant to high temperature, with long-life guaranteed alignment system, and low maintenance costs.
- The adjustable air ventilation inside the dryer provide you also perfect results with waterbased inks.
(also available in 200/400 cm IR-tunnel-length, 70/120 cm beltwidth)
Pictures

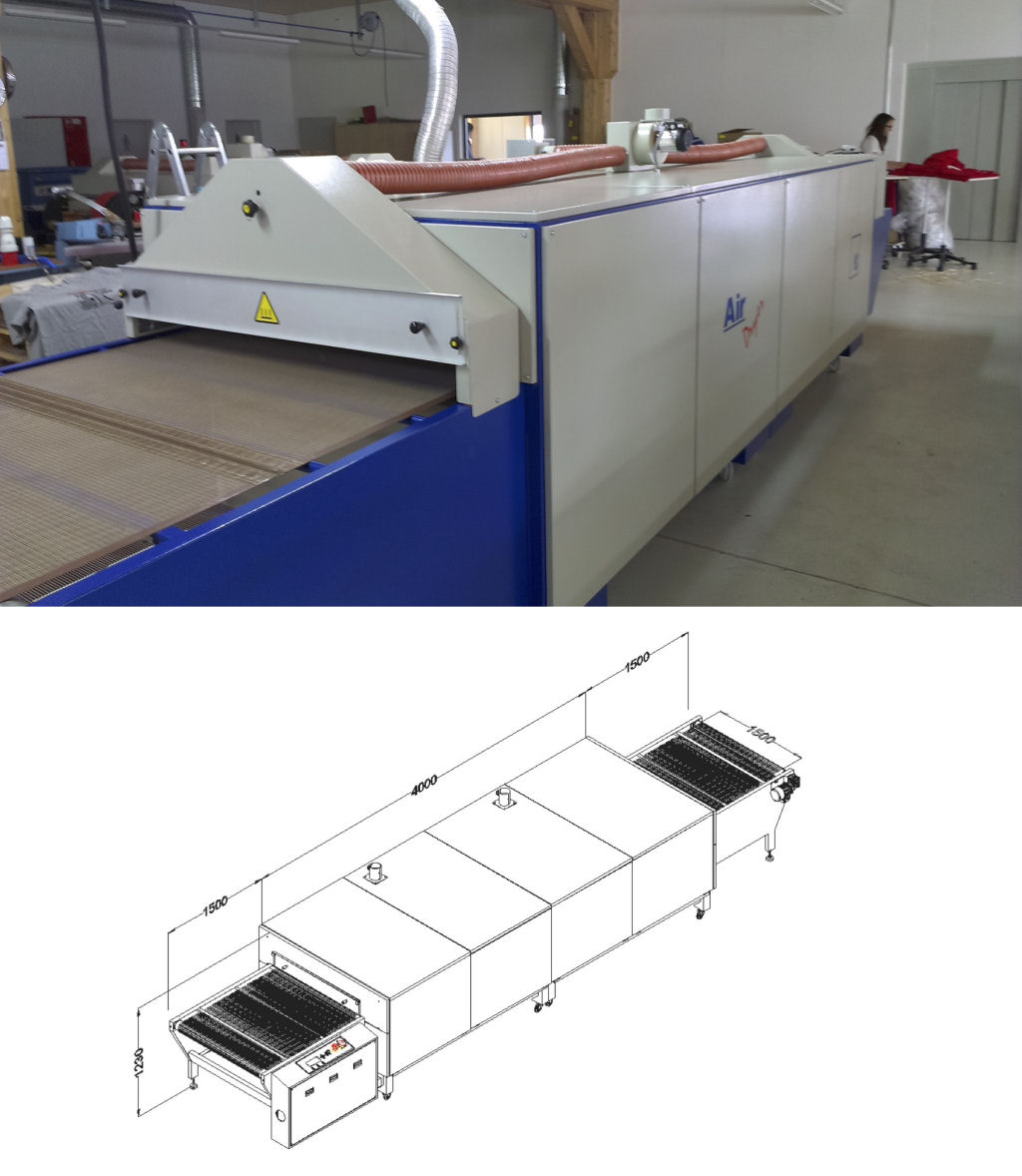

S-DRY AIR 150-400
