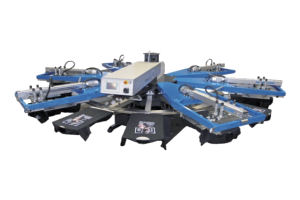

BASIC-LINE+FLOCK Flocking Machines
- Print area max. type S: 530x700 mm
- Flock-area: 400x500 mm
- Print area max. type L: 530x700 mm
- Flock-area: 400x500 mm
- stations/pallets: 6-18
- printing stations: up to 16
- flocking stations: 1-6
Technical Data
- max. printing area: 500 x 700 mm
- max. flock area: 400 x 500 mm
- squeegee-drive system: AC-Servo-drive, high-precision-spindle-drive,
- Pallet-drive: frequency controlled AC-Servo-Drive
Squeegee-System
- 4-Cylinder POWER-Squeegee-System
- Floodbars with mecanical way-adjustment for precise hight-leveling
Central Main-Control with touch-screen Monitor
- with Siemens-standard-modules
- microprocessor with diagnostic programm - easy to operate –
- control-keypads at every print station for fast set-up START, STOP, LIFT-UP/DOWN, Squeegee-movement; Squeegee-stroke-speed individual adjustable
- central electronic off-contact adjustable on the touch-screen
Flock-System
- high voltage from 10 - 80 kV adjustable
- with ground surveillance
- digital kV- and uA-measuring devices
- automatic high voltage discharge
- dosing time and flock time adjustable
Printing programmes
- 6-standard print programs + high density+cool-stop
- + sampling-start up - finishing programs+double-index+MULTIFLASH-program
- cleaning-program: in-between pallet-stop, left / right, free wheel-mode

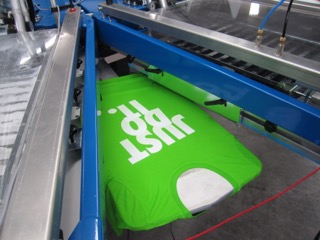

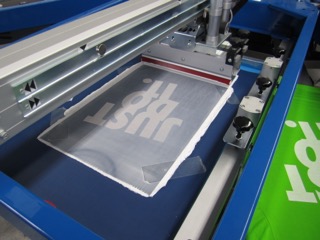

Pictures
Downloads
- About the flocking process
Get more information about the flocking process in detail (PDF file; 299 KB) - SIEMENS TOUCH Flyer
The machine is controlled by a touch screen based on SIEMENS technology (PDF file; 329 KB)
