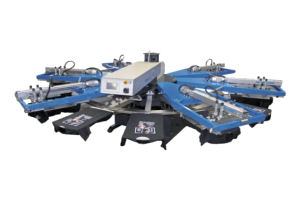

BASIC-LINE Printing Machines (S / L)
- 8 – 20 stations
- max. printsize 530 x 500 mm (S)
- BASIC-LINE blue-L: 530 x 700 mm
- Aluminium Sandwich pallets
Technical Data
Squeegee-System
- AC-Servo-drive
- high-precision-spindle-drive
- 4-Cylinder POWER-Squeegee-System
- Print/Floodbars with mecanical way-adjustment for precise hight-leveling
- Comfort-liftable print-cylinders
Pallet-drive
- Precise gear-drive, frequency controlled AC-Servo-motor Central Main-Control with 7’ SMART-color touch-screen Monitor
- with Siemens-standard-modules,
- microprocessor with diagnostic programm - easy to operate –
- control-keypads at every print station for fast set-up START, STOP, LIFT-UP/DOWN, Squeegee-movement Squeegee-stroke-speed individual adjustable
- prepared for permanent-spray-system
- central electronic off-contact adjustable on the touch-screen
Printing programmes
- 6-standard print programs + high density+cool-stop
- + sampling-start up - finishing programs+double-index+Multiflash-program
- cleaning-program: in-between pallet-stop, left / right, free wheel-mode
Videos
See the BASIC-LINE printing machine in action, best choice for automatic bag printing.
Downloads
- BASIC-LINE Flyer
Download our flyer with useful information and technical data about the printing machine BASIC-LINE (PDF file; 790 KB) - ALPHA-LINE / BASIC-LINE Technical data
This flyer provides technical data about the printing machine ALPHA-LINE and BASIC-LINE (PDF file; 785 KB) - SIEMENS TOUCH Flyer
The machine is controlled by a touch screen based on SIEMENS technology (PDF file; 329 KB) - BASIC-LINE Arguments
You need additional arguments? See our list why HEBBECKER printing machines are the right choice (PDF file; 154 KB)
