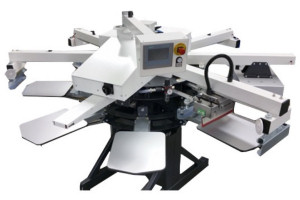

XS-LINE Printing Machines Gives you more then other Screenprinting presses in its class
- 8 stations, 5 colors + 1 flash
- variable & compact, only 2,20m diameter
- printsize 300 x 210 mm
Technical Data
- 8 stations/pallets
- 5 printing-heads
- 1 flash-cure
- print area max.: 300 x 210 mm (A4 qrosswise)
- pallet-drive: frequency controlled AC-Servo-Gear-Drive
squeegee-drive system
- pneumatic double-acting cylinder
- POWER-Squeegee-System
main control
- swivelling control panel arm with 4” SMART-touch-screen-display
- Microprocessor with diagnostic-program
printing programmes
- 6 standard-programms
- + high-density + cool-stop+sampling+Start-Finish+double-index+Multiflash
- screen-cleaning-mode, pallets-stop between the print-stations
- Free-wheel-mode
accessories
- 8 pces. alu-sandwich pallets 400 x 320 mm with neck
- 5 pces. print squeegees 310 mm 65°Shore
- 5 pces. alu-flood-bars 310 mm
- 1 pce. SPOT-Flash 300 x 210 mm
energy requirements
- electric: 3x400V V, PEN, 2,5 kW
- Compressed air: 8 bar, approx. 120-180 ltr./h
dimensions
- Machine-diameter: 220 cm / 86”
- Screen-measurement: 560 x 420 mm
- Profil: 25x 25 mm
Downloads
- XS-LINE Flyer
Download our flyer with useful information and technical data about the printing machine XS-LINE (PDF file; 1.0 MB) - SIEMENS TOUCH Flyer
The machine is controlled by a touch screen based on SIEMENS technology (PDF file; 329 KB)
