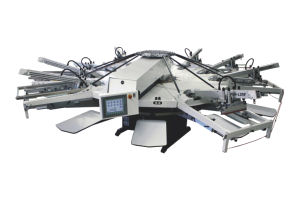

ALPHA-LINE Printing Machines (S / L / XL)
- 8-20 stations
- max. printsize 530 x 700 mm
- ALPHA-LINE-S 530 x 500 mm
- ALPHA-LINE-XL 700 x 1.000 mm
- Aluminium Sandwich-pallets
Technical Data

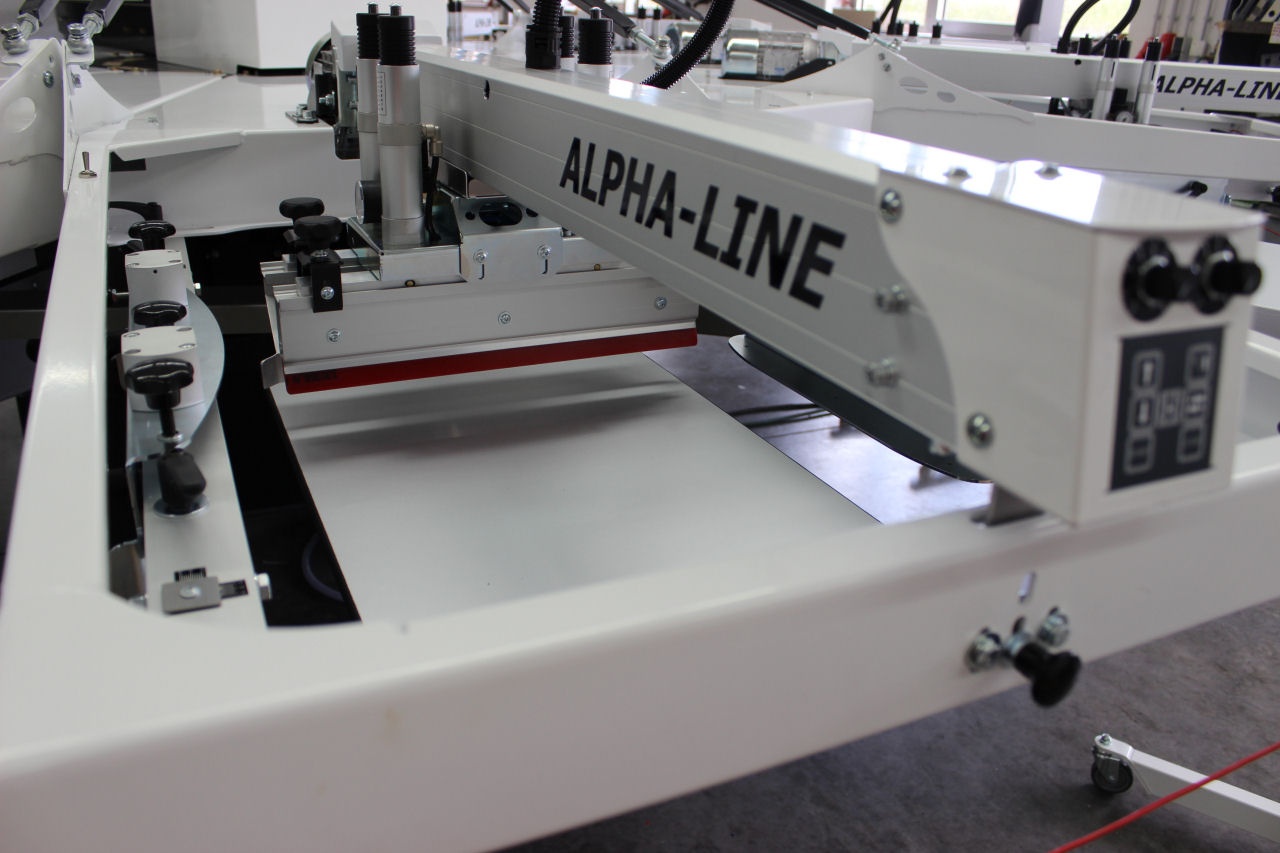

Squeegee-System
- AC-Servo-drive
- high-precision-spindle-drive
- 4-Cylinder POWER-Squeegee-System
- Print/Floodbars with mecanical way-adjustment for precise hight-leveling
- Comfort-liftable print-cylinders Supporting-arms/pallets
- With fast-snap tensioning-system Pallets slideable in lengthwise direction +/- 10 cm Pallet-drive
- Precise gear-drive, frequency controlled AC-Servo-motor
Central Main-Control with SMART-color-touch-screen Monitor
- with Siemens-standard-modules,
- microprocessor with diagnostic programm - easy to operate –
- control-keypads at every print station for fast set-up
Printing programmes
- 6-standard print programs + high density+cool-stop
- + sampling-start up - finishing programs+double-index+Multiflash-program
- cleaning-program: in-between pallet-stop, left / right, free wheel-mode
Pictures
Videos
Downloads
- ALPHA-LINE Flyer
Download our flyer with useful information and technical data about the printing machine ALPHA-LINE (PDF file; 1.3 MB) - ALPHA-LINE Technical data
This flyer provides technical data about the printing machine ALPHA-LINE (PDF file; 1.2 MB) - ALPHA-LINE XL Technical data
This flyer provides technical data about the printing machine ALPHA-LINE type XL (PDF file; 3.8 MB) - SIEMENS TOUCH Flyer
The machine is controlled by a touch screen based on SIEMENS technology (PDF file; 329 KB) - ALPHA-LINE Arguments
You need additional arguments? See our list why HEBBECKER printing machines are the right choice (PDF file; 154 KB)
